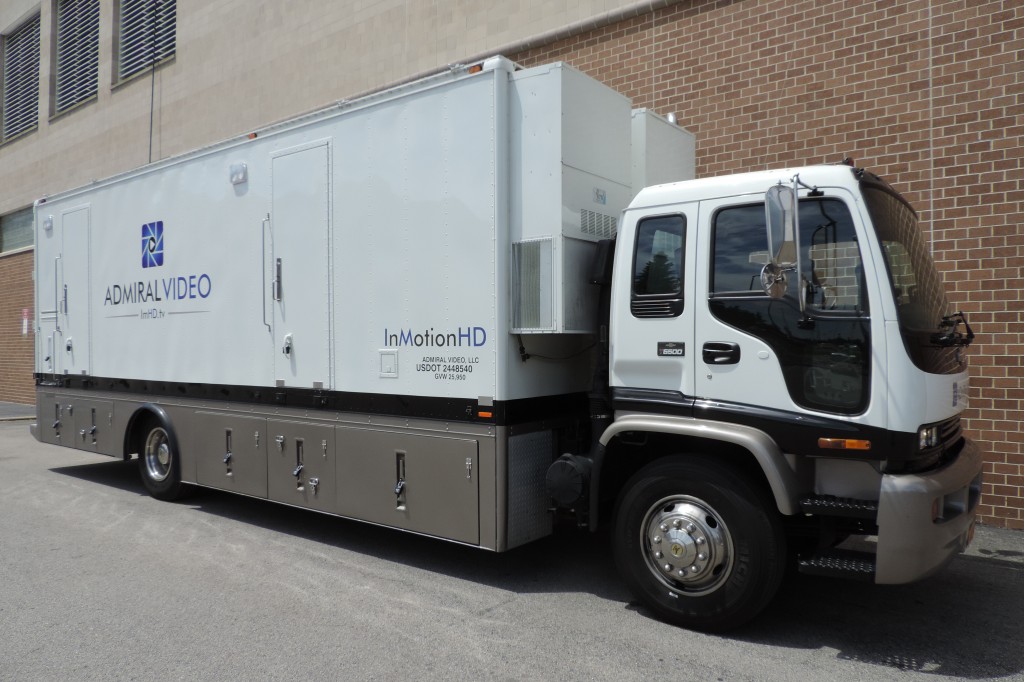

36′ HD Production Truck

Reference only!  This truck is SOLD!

Packing powerful technology into a small footprint, our NLT-36 truck offers the flexibility and versatility to tackle virtually any production challenge. Complex audio and video routing, multiple transmission formats and paths, and multi-screen outputs are all easily accomplished.

With complete camera, switching, graphics, replay, and audio capabilities, NLT-36 is ideally suited for full production of live sports broadcasts, concerts, and corporate events. In addition, we can provide camera, engineering, and communications support to outside remote productions.

Powerful technology in a small footprint.

TECH SPECS

Floor Plan

Specs & Equipment

Downloadable Spec Sheet [PDF]

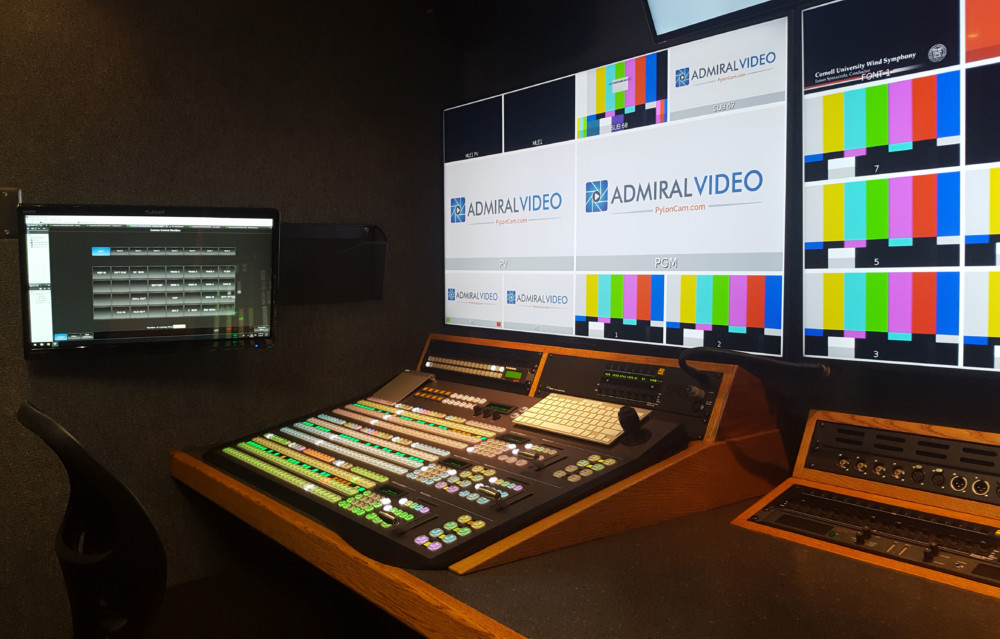

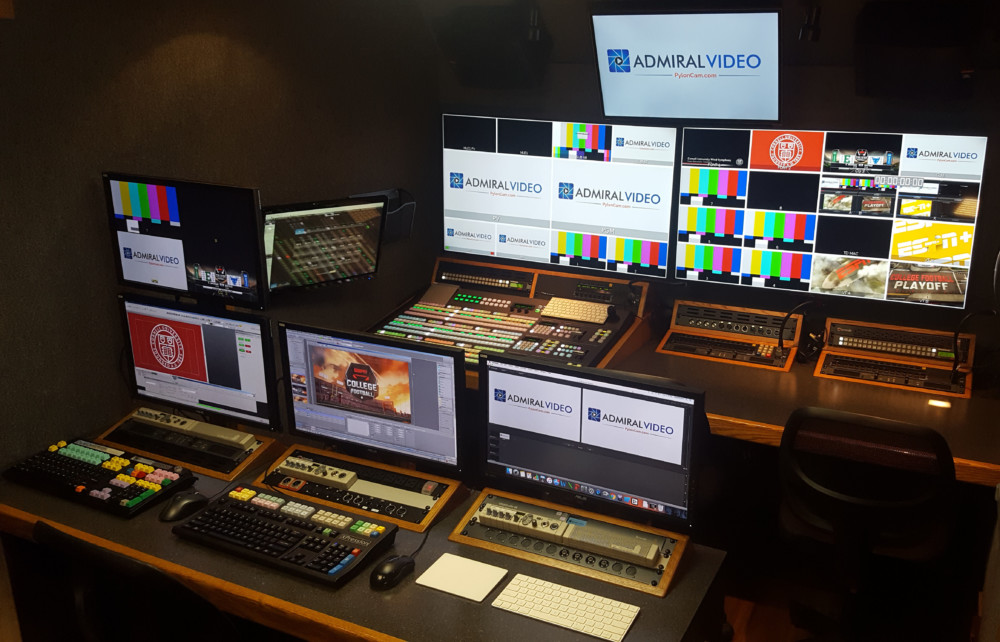

  • Switching & Effects

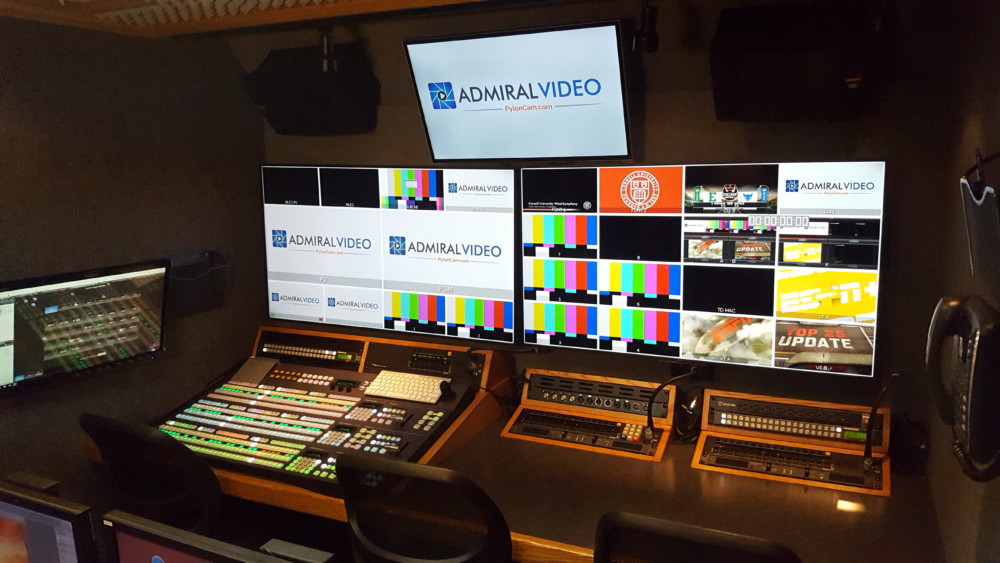

    • Ross Carbonite+ with 3-Row C3X Panel
      • Carbonite+ Chassis, 2 ME, 24 Inputs, 10 Outputs, 2 Floating Chroma Keyers, 8 Floating DVEs, 24 Frame Synchronizers, 4 Media Stores, 4 Floating “MiniME” Buses, “Multi-Screen” output for IMAG
      • DashBoard Live Assist via Touch Screen, 24 Color-correctors, 2 Internal Multi-Viewers with up to 16 Monitors each, Red and Green tallies
      • File Formats: Native Resolution TGA / PNG Sequence for animations and WAV files (48kHz) for associated audio; JPG TGA PNG for stills
    • Apple Mac Mini (TD Position)
      • Mac OS X, Windows 10
      • Ross DashBoard software for switcher and router control
      • Planar PXL2430MW 24″ Touch Screen Monitor

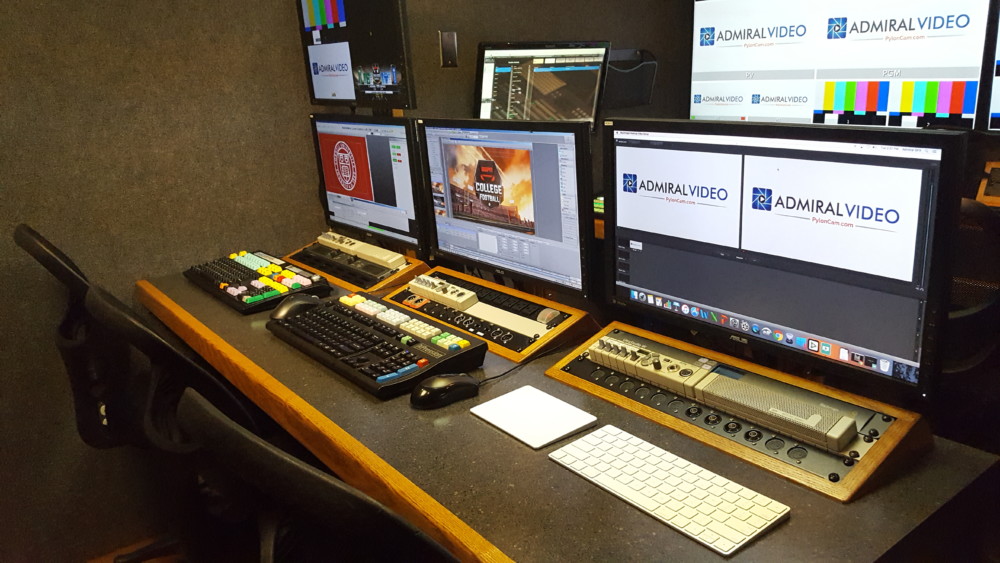

  • Graphics
    • Ross XPression SCE Real-Time Motion Graphics System
    • Apple Mac Mini (Graphics Position)
      • Mac OS X, Windows 10
      • Microsoft Office, Blackmagic Media Express, Wirecast, PlaybackPro
      • Ross DashBoard
    • (6) HDMI to HD-SDI Converters in Production for PowerPoint, Graphics Playback
  • Camera Equipment
    • (5) GVG LDK-3000+ Multi-Format Cameras with LDK 5630 Triax Adapters- 720p and 1080i 59.94
    • (5) GVG LDK 4580/52 Triax Base Stations
    • (2) GVG LDK 8000 Multi-Format Cameras with LDK 5681 Triax Adapters – 720p/59.94 and 1080i/59.94
    • (2) GVG LDK 4502/52 Triax Base Stations
    • (7) GVG LDK 4640/10 OCP 400 Remote Control Panels
    • (4) Carter Custom Large Lens Adapters
    • (4) GVG LDK 5307/00 7″ HD LCD Studio Viewfinders
    • (1) Canon XJ76x9B Studio Lens with Semi-Servo Controls
    • (1) Canon J70x9.5 Studio Lens with Manual Controls
    • (3) Canon J55x9 Studio Lenses with Semi-Servo Controls
    • (1) Canon XJ25x6.8 Studio Lens with Semi-Servo Controls
    • (3) Fujinon 17x HD ENG Lenses with 2x
    • (2) Vinten Mark 7B Pan Heads / Shotoku 11-17 Tripods
    • (1) Cartoni Omega Pan Head / Matthews HD Tripod
    • (3) Secced Reach 8 ENG Tripods
    • (1) Sony HDC-X310 Fiber Optic HD POV Camera
    • (1) Sony HFU-X310 Fiber Optic Base Station with RCP-720
    • (2) Fujinon HSS18x5.5 HD Full Servo Lenses
    • Additional Camera Equipment Upon Request

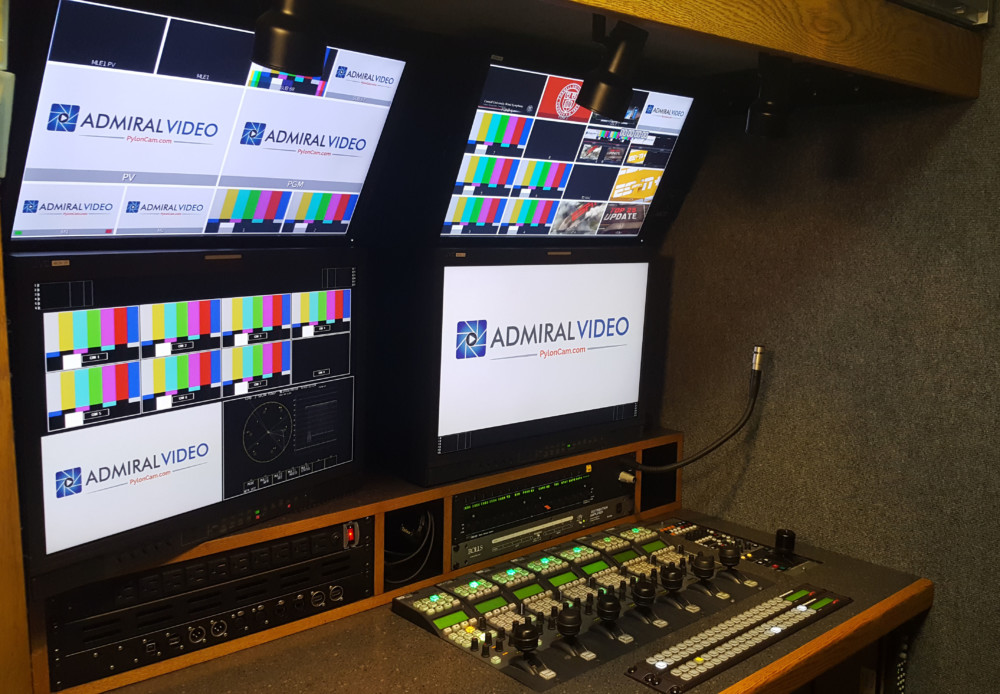

  • Video Control
    • (2) JVC-DT-V24G11ZAZ 24” QC HD LCD Monitors

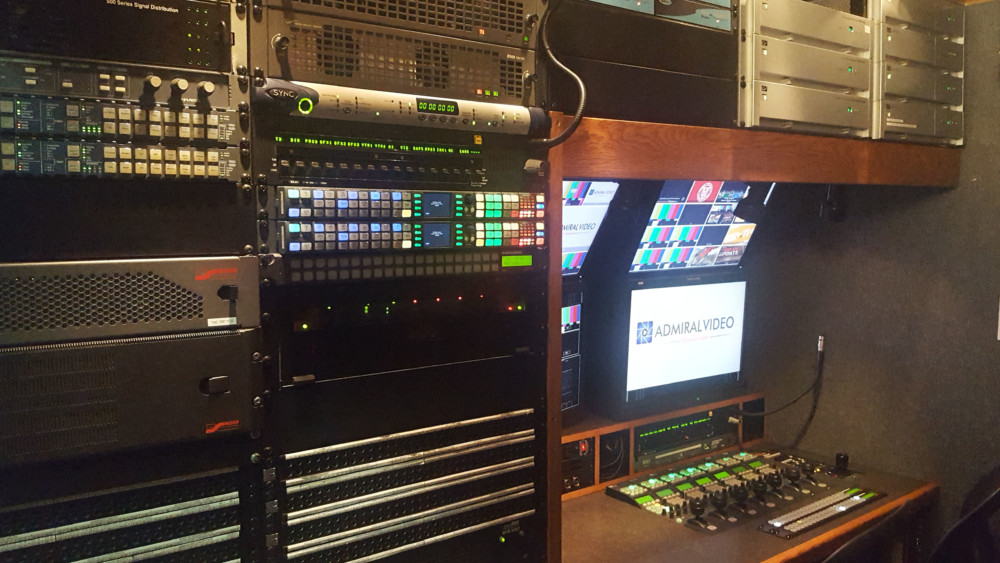

    • Evertz 7767VIP12-HSN HD Multi Viewer (12 HD-SDI Inputs)
    • Leader LV-7700 HD Rasterizer
  • In-Truck Video Monitoring
    • (2) Sony XBR-43X800E 43″ Monitors
    • Vizio 32” 1080p Program Monitor
    • (12) ASUS PB238Q 23” IPS LED 1080 Monitors
    • (3) ASUS C422AQ 21.5″ IPS LED 1080 Monitors
    • (2) Decimator Design DMON-12S Multiviewers
      • (12) HD-SDI Inputs Each
      • Embedded Audio Monitoring, UMDs, and Tallies
    • ROKU 3 Streaming Unit
    • Off-Air / Cable HD Demodulator
  • Field Video
    • (6) 20” HD LCD Monitors with SDI-HDMI Conversion
    • (6) Telecast Rattler SDI-Fiber Systems
    • (8) Integrated SDI-Fiber Transmitters
    • (4) Integrated Fiber-SDI Receivers
  • Replay / Recording

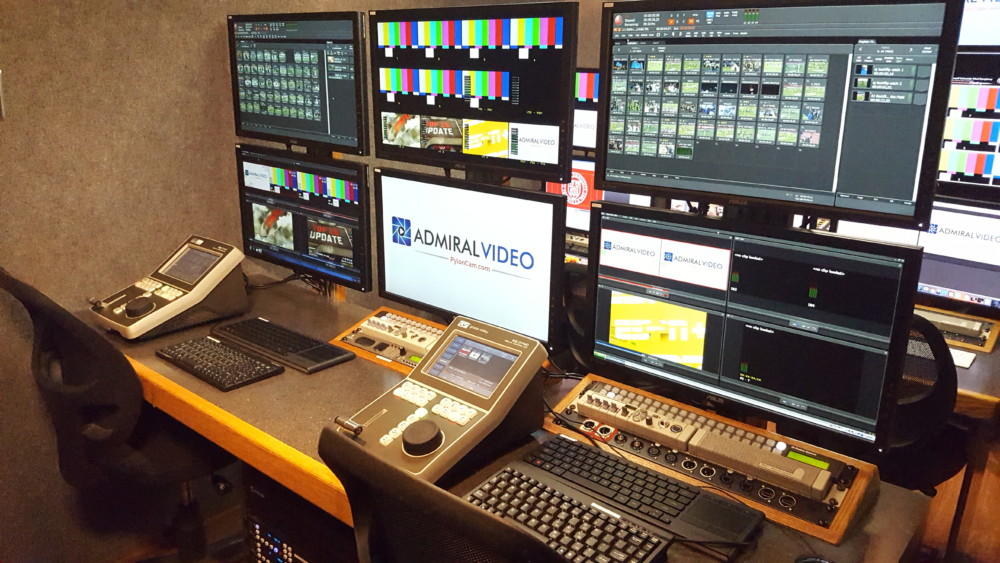

    • (2) Grass Valley K2 Summits with Dyno Replay and Channel Flex
      • 4 Record Channels / 2 Playback or 6 Records / 1 Playback

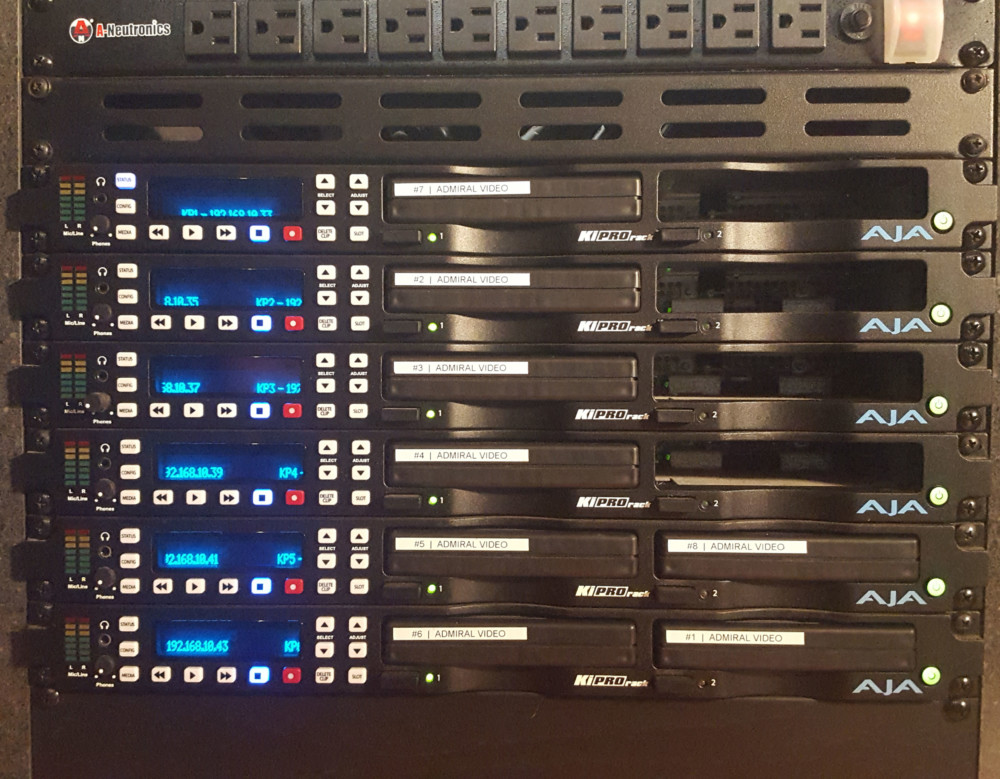

    • (6) KiPro Rack Hard Disk Recorders (Wired for 8)
      • Apple ProRes and Avid DNxHD Codecs
      • (8) KiStor (USB 3) 750GB Removable Hard Drives
    • Blackmagic Design UltraStudio 4K H.264 Recorder- Record Proxy Files in lieu of DVD Recorder
  • Audio

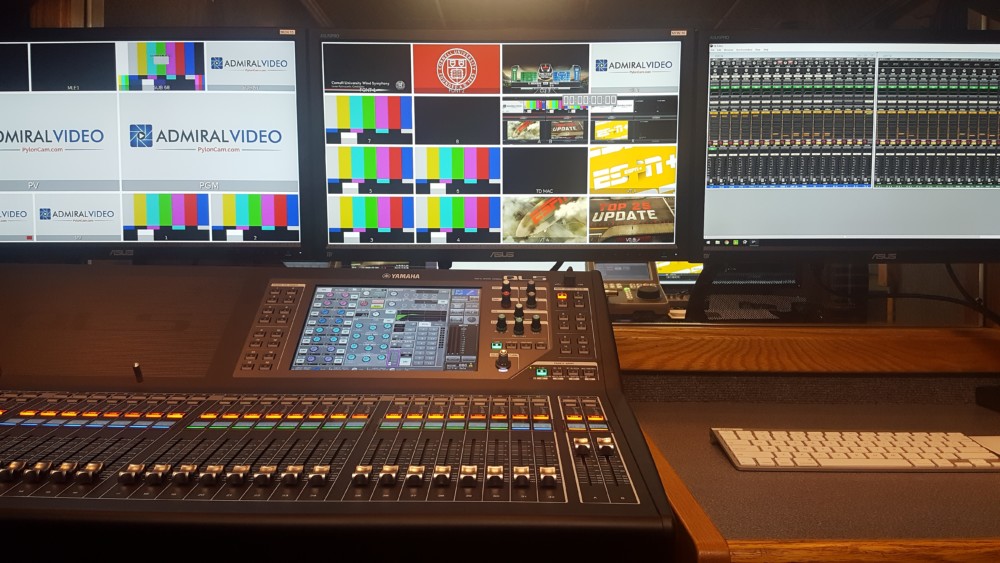

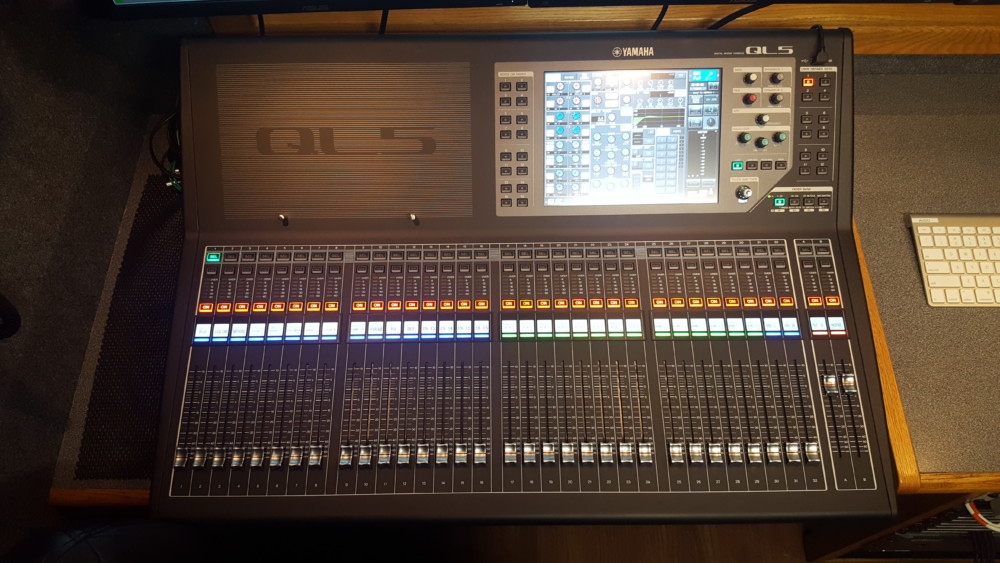

    • Yamaha QL5 with (2) MY16AE Option Cards
      • AES: 32 In, 32 Out; Analog: 32 In, 16 Out; Dante: 64 In, 64 Out
      • 16 MIX, 8 MATRIX and Stereo Buses
      • Internal MP3 Player (USB)
      • Full Digital Processing, Per-Input/Output Delay up to 1000ms, Real-Time Analyzer
      • Separate Primary and Secondary Dante Networks for redundancy
    • Apple Mac Mini (A1 Position)
      • Mac OS X, Windows 10
        • RTS AZedit, Yamaha QL Editor, InstaCue, Ross DashBoard
    • Ross NK-D64-110 Balanced AES Audio Router (64×64)
    • Ross NK-A32-HQ Stereo Analog Audio Router
    • Grass Valley Gecko Flex Frame with (10) 8910ADA-ST Stereo DAs
    • Ross DFR-8321 OpenGear Frame with (3) Blackmagic SDI-AUDIO De-Embedders

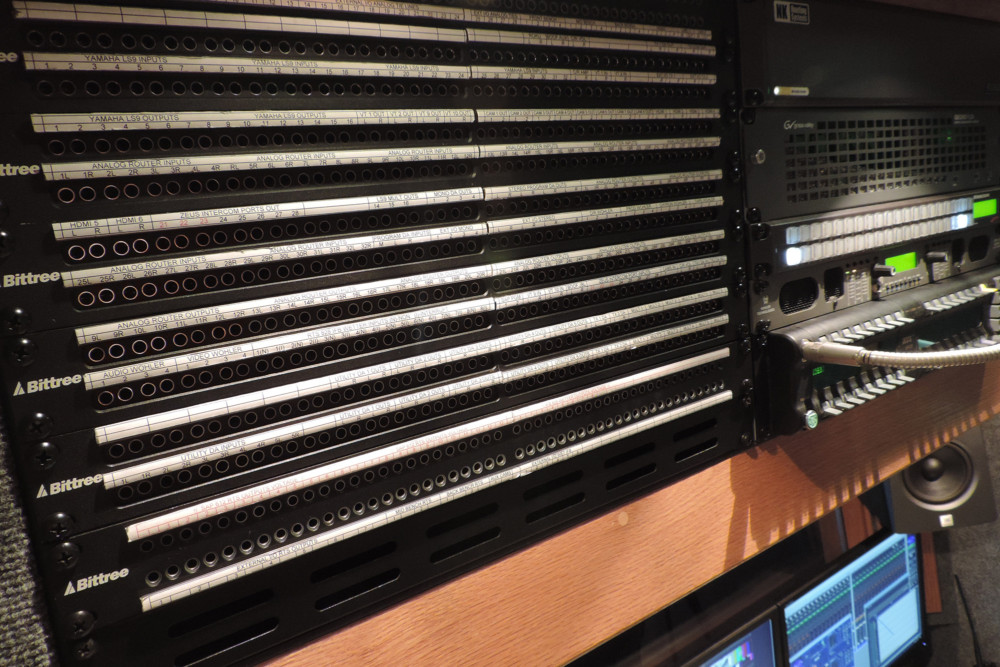

    • (672) Analog Patch Points, (384) AES Patch Points, (50) TT Patch Cords
    • (2) JBL LSR2325P Studio Monitors (Audio Booth)
    • (2) JBL Control 5 Speaker Monitors (Production)
    • Samson Servo 300 Amplifier
    • (3) Videotek APM-200 Speaker Monitors (Production)
    • (2) Wohler AMP1-S8 Speaker Monitors (8 CH AES, 4 CH Analog) – (1) each in Audio and Tape
    • (2) Fostex 6301B (Video)
  • Field Audio
    • (3) Yamaha Tio 1608-D 16-Input, 8-Output Dante Stage Boxes – Primary and Secondary Networks with Fiber Converters, Remote HA control from QL5 Console
    • (2) Sennheiser HMD-26-II Talent Headsets
    • (3) Sennheiser HMD-25 Talent Headsets
    • (3) Daltech Announce Boxes
    • (3) Sennheiser MD46 Stick Mics
    • (3) Sennheiser MKH816 Shotgun Mics
    • (3) Sennheiser ME66 Shotgun Mics
    • (2) Sony ECM-77B Lavaliere Mics
    • (1) Sony ECM-66B Lavaliere Mic
    • (1) Audio-Technica AT8022 Stereo Mic
    • (1) Electro-Voice RE50N/D-B Omni Mic

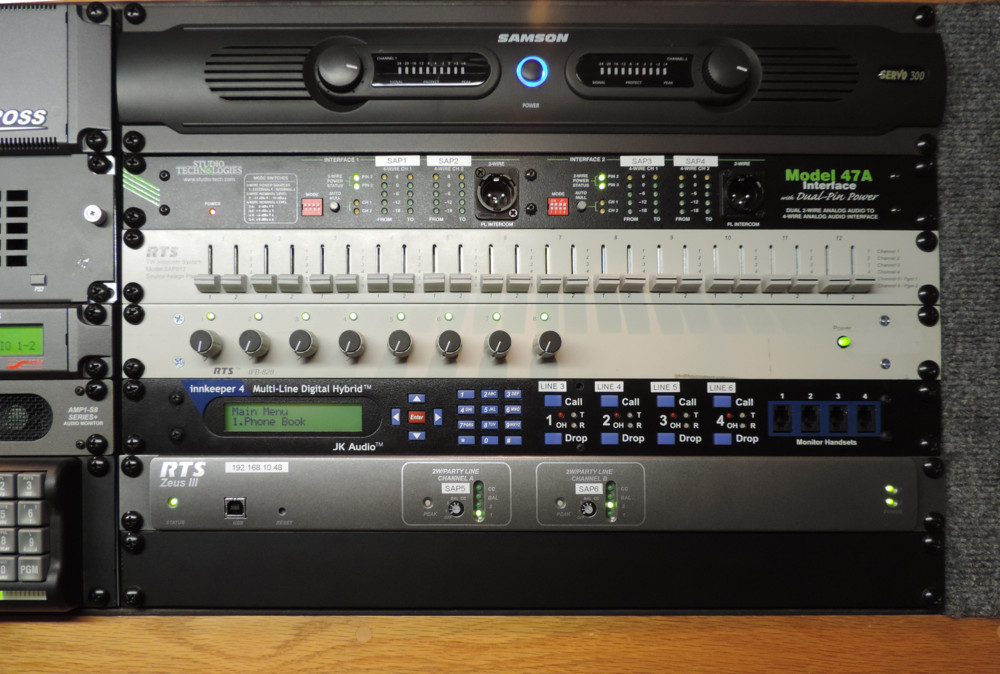

  • Communications
    • RTS Zeus-III 32-Port Intercom Matrix
      • Fully Programmable (AZEdit)
      • Point-to-Point, Party Line, IFB; (2) Integral 2- to 4-Wire Converters (2 Channels PL)
    • JK Audio Innkeeper 4 – (4) Channel TIF
    • (10) Telex KP Stations
    • (1) Studio Technologies Model 47A 2- to 4-Wire Converter / Power Supply (4 Channels PL)
    • (1) Telex DSI-2008 2- to 4-Wire Converter (2 EXT House PL Interface)
    • (1) Telex PS-15
    • Telex SAP-612 Source Assign Panel (6 Channel PL)
    • Telex IFB-828 16-Channel IFB Power Supply
    • (4) RTS 4030 IFB Beltpacks
    • (8) RTS BP325 2-Channel Beltpacks
    • (8) PH-88 Lightweight Headsets
    • (6) Double-Muff Headsets
    • (6) Single-Muff Headsets
    • (3) Daltech Announce Boxes

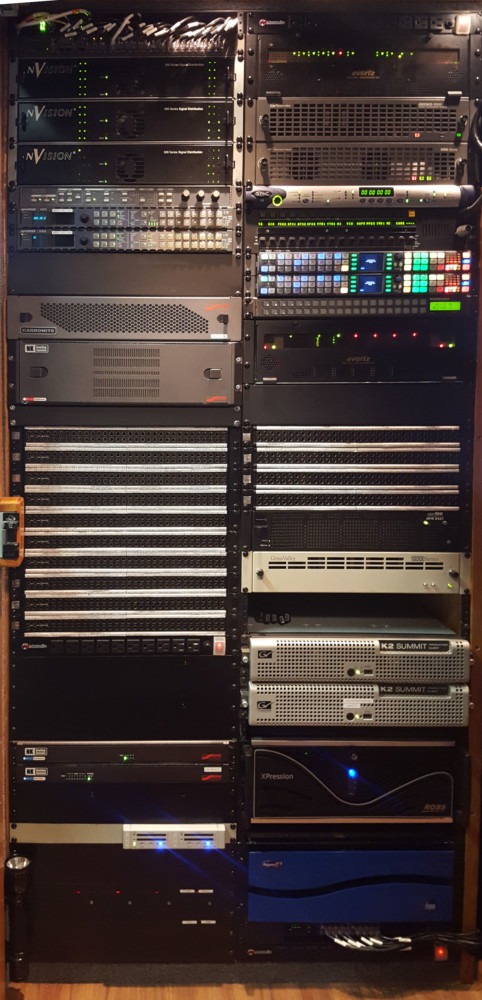

  • Terminal Equipment
    • Ross NK-3G72-FRM 72×72 3G HD-SDI Router
    • Ross NK-IPS Network Bridge – Network Control of Routers
    • Ross NK-VRC Virtual Router Control – Programs Routing System
    • (10) Ross RCP-NKM 40 Button Programmable Router Panels
    • (2) Astro Designs SL-7036 SD/HD Tri Level Sync Generators
    • DigiDesign SYNC HD
    • (2) Harris X-85 Dual Path Up/Down/Cross/Embedder/De-Embedder/FS
    • (2) Teranex VC100 HD Up/Down/Cross Converting Frame Syncs
    • (6) Gefen DVI to HD-SDI Scalers (For computer desktops to HD Router)
    • (2) Evertz 7700 Frames with Network Cards
    • (4) Evertz 7711UC-HD Multiformat Up-Converters
    • (10) Evertz 7710DCDA-HD Down-Converters SDI – Composite
    • (2) Evertz 7751TG-HD Test Generators
    • (30) NVision 500 Series HD DAs
    • (20) GVG Composite Video DAs
    • (896) Mini WECO Patch Points

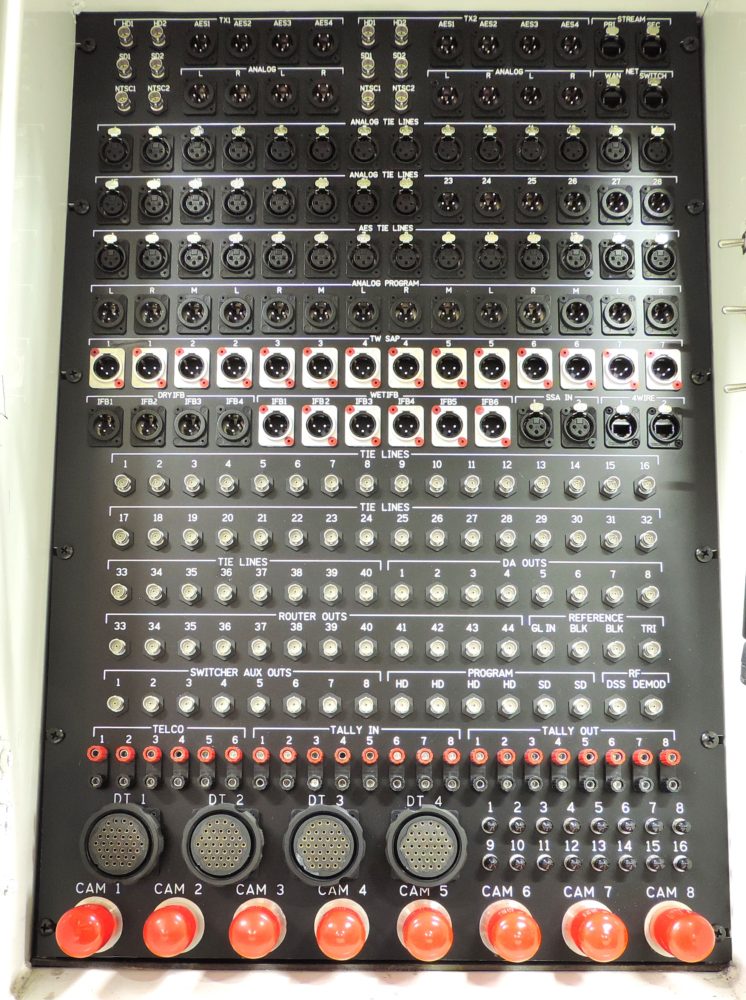

  • Rear I/O Panel
    • (2) Multi-Format Transmission Router Paths – HD, SD, Analog, AES, Analog Audio
    • (28) Patchable Analog XLR Tie Lines
    • (14) Patchable AES XLR Tie Lines
    • (5) Patchable Analog Program XLR (L, R, M)
    • (14) Patchable RTS SAP XLR (Belt packs)
    • (4) Dry IFB XLR
    • (6) Wet IFB XLR
    • (2) DSI-2008 2-4 Wire Converter IN (House Intercom)
    • (2) 4-Wire Intercom RJ-45 (Remote Panels)
    • (40) Patchable HD-SDI BNC
    • (12) Patchable HD Router Outs BNC
    • (1) WAN In RJ-45
    • (1) Network Out RJ-45
    • (2) Streaming RJ-45
    • Reference IN and OUT BNC
    • (8) Patchable Switcher AUX Outs BNC
    • (4) HD-SDI Program BNC
    • (2) SD Program BNC
    • (6) Telco IN (Binding Post)
    • (8) Tally IN (Binding Post)
    • (8) Tally Out (Binding Post)
    • (4) Patchable DT-12 Female Analog Audio
    • (16) Single Mode Fiber ST – (2) to Dante Primary/Secondary Networks, (2) to Sony CCU, (4) to Fiber-SDI Receivers, (8) to SDI-Fiber Transmitters
    • (8) Camera Triax
  • Network
    • Asus RT-AC66U Dual Band 802.11AC Gigabit Router
    • TP-Link TL-SG1048 48 Port Gigabit Switch
    • (2) Wired Gigabit RJ-45 to Each Bench
  • Cable Inventory
    • 2000’ Mini Triax
    • (3) 250’ DT-12 Audio
    • (1) 500′ DT-12 Audio
    • (3) 150’ 6 Pair Audio
    • 500’ XLR Audio
    • 500’ BNC Video
    • 500’ AC Power Cords
    • (2) 1000’ 4-Channel ST Tactical Fiber Reels
    • (1) 1500’ 12-Channel ST Tactical Fiber Reel
  • Power Requirements
    • Input 190-280 Volts – Adjustable Isolation Transformer
    • Single Phase, 150 Amps
    • 125’ Power Cable
  • Dimensions
    • Truck GVW 25,950 LBS
    • Travel Dimensions: 36’L x 8’6”W x 12’4”H
    • With Stairs: 36’L x 14’6”W x 12’4” H
